UV Water Systems

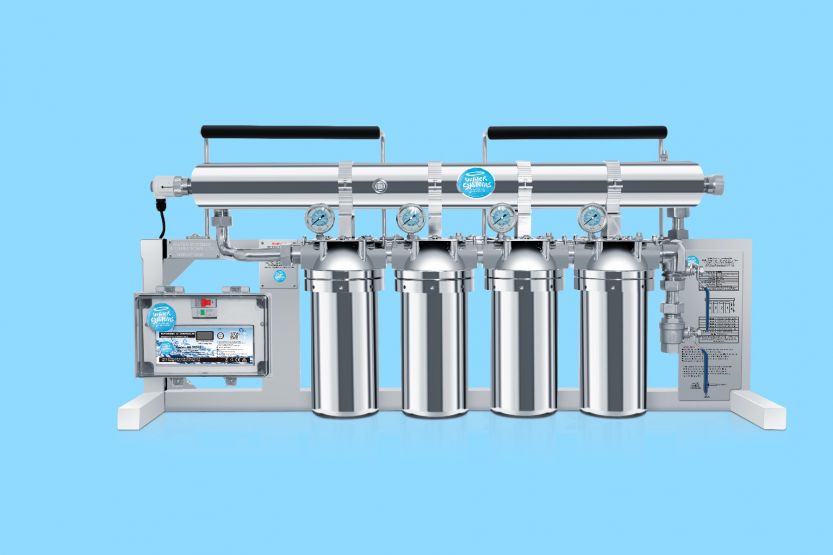

WSR4 - 4 Filter 80 Lpm Residential UV Water System

WSR4 - 4 Filter 80 Lpm Residential UV Water System

WSR4

$6,670.00 NZD
$6,670.00 NZD
Sale Sold out
Excl. GST: $5,800.00 NZD

Download Data Sheet here

The WSR4 is designed for:

  • Twin Bathroom Residences
  • Untreated water sources
  • Typically used in residences with 5 occupants
  • Untreated water cartridge filtration at 85 Lpm
  • Chlorinated water cartridge filtration at 75 Lpm
  • UV dosage 60mJ/cm2 @ 95% UV Transmission @ 85 Lpm

Filtration:

  • 10" Jumbo filter cartridges
  • Untreated water cartridges: Pleated/Pleated/Melt Blown/Carbon
  • Chlorinated water cartridges: Melt Blown/Carbon/Carbon/Melt Blown
  • All filter heads fitted with glycerine filled gauges to indicate 'plugging'

Hang On Its 2 X SS Brackets, Connect The Inlet /Outlet & Plug In Simplicity

Can be mounted outside provided the System is fitted with an All Weather Cover and ambient temperatures do not drop to freezing level

Major features include:

  • Water Flow
  • ALL stainless steel Jumbo 10" Filter heads & housings NSF Tested for structural integrity
  • ALL water passages sized for flow rates well in excess of UV sterilisation capability
  • SS 1.0" Unions & tube fittings for full flow
  • 1.0" inlet / outlet
  • 10" Jumbo filter housings
  • All joins sealed with o-rings or rubber gaskets (thread tape/sealants not used) no more pesky leaks
  • Pressure gauges on each filter head (o-ring sealed for ease of replacement if required)
  • Chamber 1/2" port (for fitting a UV sensor)

Heat Dissipation:

  • All stainless steel frame
  • Extended length chamber
  • Superior 'raised fin' chamber bracket system
  • Unrestricted air flow around UV chamber

Electrical:

  • 1 x 100 watt UV lamps
  • 1 x 100 watt UV Power Supply Assemblies
  • Ballast is gel filled to prevent moisture ingress
  • Digital 365 day countdown to ensure lamps are replaced on time
  • Ballast carries the RCM license
  • 220v supply via RCBO (trips before house RCD in case of local short)
  • 220v Surge Protector (to absorb repetitive fluctuations that otherwise shorten the life of ballast components)
  • All components housed in an IP55 rated vented box for complete moisture protection

All weather cover available as an option
