UV Water Systems

WSUVK30N - Low Flow UV Kit; 32 Watt NSF 55 Class B

WSUVK30N - Low Flow UV Kit; 32 Watt NSF 55 Class B

WSUVK30N

$1,840.00 NZD
$1,840.00 NZD
Sale Sold out
Excl. GST: $1,600.00 NZD

Download Data Sheet here

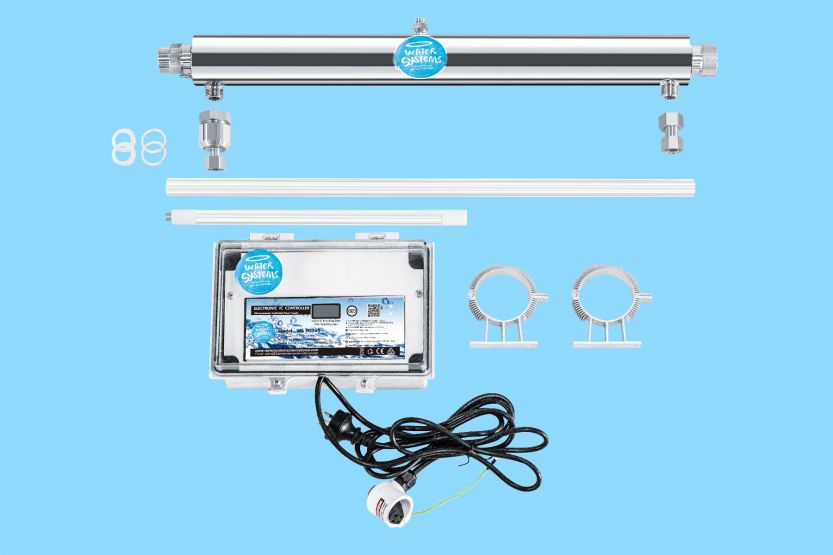

The WSUVK30N features:

  • NSF 55 Class B certification
  • Ideal for 'mission critical' locations where the health authorities require a certified UV dosage. This means that the flow rate must be limited to allow the UV lamps to provide a dosage of at least 16 mJ cm2.
  • 15mm inlet / outlet connections for 23 Lpm flow rate
  • UV Chamber is fitted with 1 x 32 watt lamp, which fits inside its quartz sleeve, and is powered by a UV Electronic Ballast enclosed in a waterproof IP box.
  • The Sturdy SS brackets to fix the UV Chamber to a beam or wall
  • Weather protected lamp pin connection

Service Requirements:

  • Service when the Ballast digital display is A3 (after 365 days use)
  • Clean Quartz Sleeve (WSI-500-T5Q)
  • Replace back up nylon rings if damaged (2 sets WSI-T5B)
  • Refit Sleeve with new silicon seals (2 sets WSI-T5S)
  • Refit End Caps - lubricate threads
  • Fit new UV Lamps (WSI-32-357-T5L)
  • Check for leaks
  • Attach Lamp Lead and switch on
  • If Ballast is faulty replace with WSI-PS-EC365
View full details
