UV Water Systems

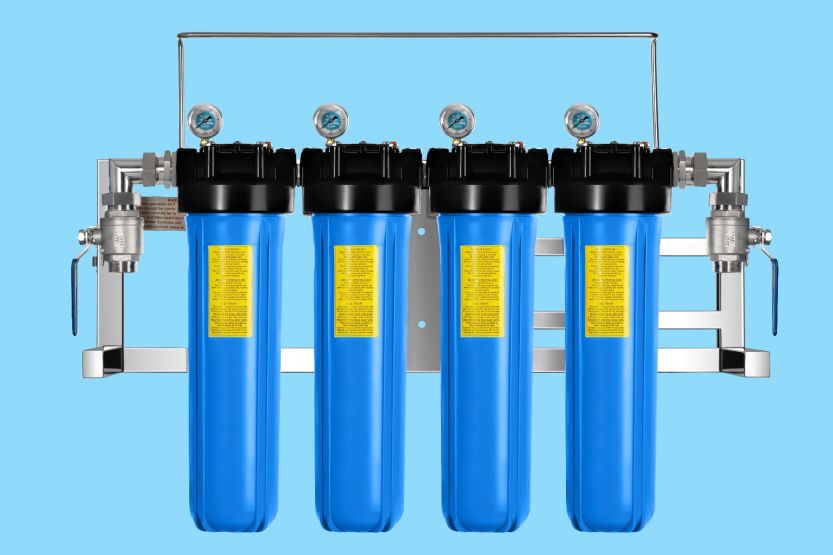

WSC4M20P - 4 Filter High Flow Mains Water Filtration System (With Cover)

WSC4M20P - 4 Filter High Flow Mains Water Filtration System (With Cover)

WSC4M20P

$2,990.00 NZD
$2,990.00 NZD
Sale Sold out
Excl. GST: $2,600.00 NZD



Download Datasheet here

The WSC4M20P is for the filtration of Mains/City Water to remove Chlorine.

UV: Not required IF the ‘City Water’ has already been disinfected / sterilised.

Filtration: Four 20" Jumbo Filters; flow rate tested to exceed 150 Lpm

Cartridges: 1M poly + 2 x 5M KX carbons + 1M poly
Performance: Poly 1 micron protects the KX Carbon granules from being coated with suspended solids (silt / mud).

Piping: SS pipe fittings; 1.0" BSP valving & connections (F);

Mounting: SS Frame

Shipping Carton: 1.1 x 0.8 x0.3 (0.2 m3); 30kg
Dimensions: 1035x535x235

Typical Usage • ‘Whole of Building’ supply for city properties supplied with chlorinated ‘City Water’.

Installation Guide:

Mount in the basement or externally on the southern side of the building. 2 x SS hanging brackets supplied.
Run inlet and outlet pipes horizontally under the system, then up to the 1" ball valves

Can be mounted outside provided the System is fitted with an optional All Weather Cover and ambient temperatures do not drop to freezing level

Maintenance • Replace filter cartridges annually (to prevent possible build up of bacteria in the cartridges) as there is no UV protection.

View full details
