UV Water Systems

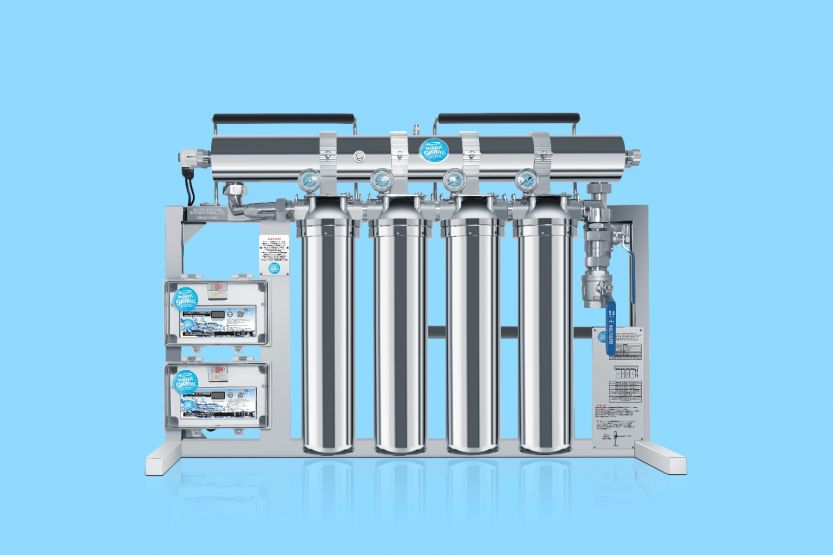

WSC4 - 4 Filter 175 Lpm Commercial UV Filtration System

WSC4 - 4 Filter 175 Lpm Commercial UV Filtration System

WSC4

$8,970.00 NZD
$8,970.00 NZD
Sale Sold out
Excl. GST: $7,800.00 NZD

Download Data Sheet here

The WSC4 is designed for:

  • For high occupancy buildings and hygienic wash down
  • Untreated water sources
  • High flow locations such as multiple buildings
  • Untreated water cartridge filtration at 175 Lpm
  • Chlorinated water cartridge filtration at 150 Lpm
  • UV dosage 60mJ/cm2 @ 95% UV Transmission @ 85 Lpm

 Filtration:

  • 20" Jumbo filter cartridges
  • Untreated water cartridges: Pleated/Pleated/Melt Blown/Carbon
  • Chlorinated water cartridges: Melt Blown/Carbon/Carbon/Melt Blown
  • All filter heads fitted with glycerine filled gauges to indicate 'plugging'

Hang On Its 3 X SS Brackets, Connect The Inlet /Outlet & Plug In Simplicity

Can be mounted outside provided the System is fitted with an optional All Weather Cover and ambient temperatures do not drop to freezing level

Major features include:

Water Flow

  • ALL stainless steel Jumbo 20" Filter heads & housings NSF Tested for structural integrity
  • ALL water passages sized for flow rates well in excess of UV sterilisation capability
  • SS 1.0" Unions & tube fittings for full flow
  • 1.5" inlet / outlet
  • 20" Jumbo filter housings
  • All joins sealed with orings or rubber gaskets (thread tape/sealants not used) no more pesky leaks
  • Pressure gauges on each filter head (oring sealed for ease of replacement if required)
  • Chamber 1/2" port (for fitting a UV sensor)

 Heat Dissipation

  • All stainless steel frame
  • Extended length chamber
  • Superior 'raised fin' chamber bracket system
  • Unrestricted air flow around UV chamber

 Electrical

  • 2 x 100 watt UV lamps
  • 2 x 100 watt UV Power Supply Assemblies
  • Ballast is gel filled to prevent moisture ingress
  • Digital 365 day countdown to ensure lamps are replaced on time
  • Ballast carries the RCM license
  • 220v supply via RCBO (trips before house RCD in case of local short)
  • 220v Surge Protector (to absorb repetitive fluctuations that otherwise shorten the life of ballast components)
  • All components housed in an IP55 rated vented box for complete moisture protection
Cover not included
