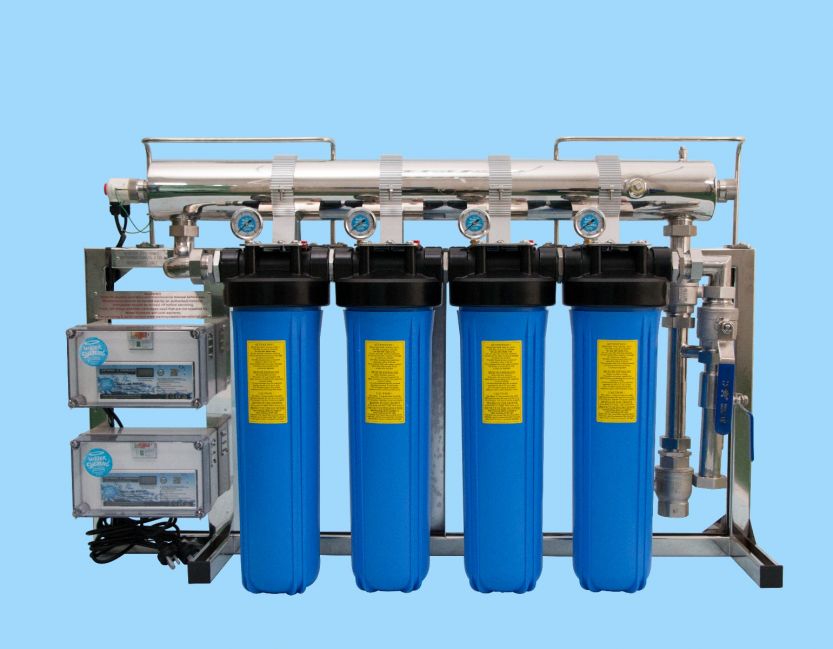

WSC4P - 4 Filter 175 Lpm Commercial UV Filtration System

WSC4P - 4 Filter 175 Lpm Commercial UV Filtration System

WSC4P

$6,325.00 NZD
$6,325.00 NZD
Sale Sold out
Excl. GST: $5,500.00 NZD



Download Datasheet here

The WSC4P is designed for:

  • High flow locations
  • Typically used in Camp Grounds, Golf Clubs, Food Producers, Manufacturers & small residential developments
  • Untreated water cartridge filtration at 175 Lpm
  • UV dosage 60mJ/cm2 @ 95% UV Transmission @ 175 Lpm

Filtration

  • 20" Jumbo filter cartridges
  • Untreated water cartridges: Pleated 20m/Pleated 5m/Carbon 5m/Melt Blown 1m
  • All filter heads fitted with glycerine filled gauges to indicate 'plugging'

Hang On Its 3 SS Brackets, Connect The Inlet /Outlet & Plug In Simplicity

Can be mounted outside provided the System is fitted with an All Weather Cover and ambient temperatures do not drop to freezing level.

Major features include:

Water Flow

  • ALL water passages sized for flow rates well in excess of UV sterilisation capability
  • SS 1.5" Unions & tube fittings for high flow commercial applications
  • 1.5" inlet / outlet with ByPass included
  • 20" Jumbo filter housings
  • All joins sealed with orings or rubber gaskets (thread tape/sealants not used) no more pesky leaks
  • Pressure gauges on each filter head (oring sealed for ease of replacement if required)
  • Chamber 1/2" port (for fitting a UV sensor)
Heat Dissipation
  • All stainless steel frame
  • Extended length chamber
  • Superior 'raised fin' chamber bracket system
  • Unrestricted air flow around UV chamber
Electrical
  • 2 x 100 watt UV lamps
  • 2 x 100 watt UV Power Supply Assemblies
  • Ballasts are gel filled to prevent moisture ingress
  • Digital 365 day countdown to ensure lamps are replaced on time
  • Ballasts carry the RCM license
  • 220v supply via RCBO (trips before house RCD in case of local short)
  • 220v Surge Protector (to absorb repetitive fluctuations that otherwise shorten the life of ballast components)
  • All components housed in an IP55 rated vented box for complete moisture protection

Options:
  • UV Sensor - alarms when UV intensity fall to 75%
  • 1.5" Actuated Ball Valve to shut on lamp failure or low UV intensity
  • Cover - an ACM durable all weather security cover
