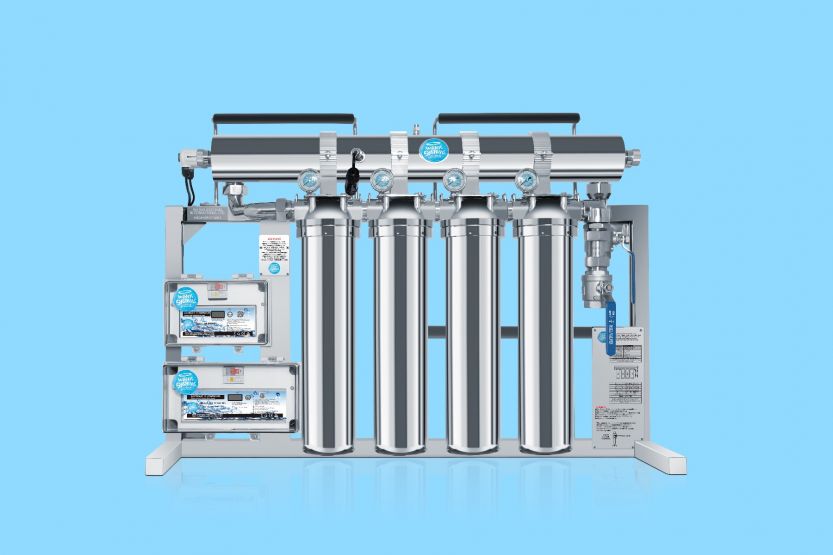

WSC4N - 4 Filter 100 Lpm Commercial UV Filtration System NSF 55 Class A & NSF 42
WSC4N - 4 Filter 100 Lpm Commercial UV Filtration System NSF 55 Class A & NSF 42
SKU:WSC4N
The WSC4N is designed for:
- Drinking water
- Both chlorinated & untreated water sources
- Required where compliance to NZ Drinking Water Standards is mandatory
- Examples: Large schools, Campgrounds, Marae's, Shopping centres, Small housing developments
Certification
- NSF 55 Class A: UV dosage 40mJ/cm2 @ 70% UV Transmission @ 113 Lpm
- NSF 42: Chlorine Reduction; 1,000,000 litres
Filtration
- 20" Jumbo filter cartridges
- Chlorinated water cartridges: Melt Blown/Carbon/Carbon/Carbon
- All filter heads fitted with glycerine filled gauges to indicate 'plugging'
Can be mounted outside provided the System is fitted with an optional All Weather Cover ambient temperatures do not drop to freezing level.
Major features include:
Water Flow
- ALL stainless steel Jumbo 20" Filter heads & housings NSF Tested for structural integrity
- ALL water passages sized for flow rates well in excess of UV sterilisation capability
- SS 1.5" Unions & tube fittings for full flow
- 1.5" inlet / outlet
- 20" Jumbo filter housings
- All joins sealed with orings or rubber gaskets (thread tape/sealants not used) no more pesky leaks
- Pressure gauges on each filter head (oring sealed for ease of replacement if required)
- Chamber 1/2" port (for fitting a UV sensor)
- All stainless steel frame
- Extended length chamber
- Superior 'raised fin' chamber bracket system
- Unrestricted air flow around UV chamber
- 2 x 100 watt UV lamp
- 2 x 100 watt UV Power Supply Assemblies
- Ballast is gel filled to prevent moisture ingress
- Digital 365 day countdown to ensure lamps are replaced on time
- Ballast carries the RCM license
- 220v supply via RCBO (trips before house RCD in case of local short)
- 220v Surge Protector (to absorb repetitive fluctuations that otherwise shorten the life of ballast components)
- All components housed in IP55 rated vented box's for complete moisture protection
